Efficient, repeatable insert molding for durable OEM components
Vertical insert molding is ideal when you need to integrate metal or other inserts directly into an injection molded part. At Hansen Plastics, we use vertical insert molding to help manufacturers reduce assembly steps, improve part durability, and produce complex components with consistent quality and repeatable results.
- Integrated inserts: Mold around metal components, threaded inserts, and specialized hardware
- Reduced assembly time: Combine multiple components into a single molded part
- Improved durability: Strong mechanical bonds and reliable insert retention
- Efficient production: Insert placement support for manual or automated workflows
What Is Vertical Insert Molding?
Precision Engineering for Complex Applications
Vertical insert molding is a form of injection molding where the mold opens vertically, allowing efficient placement of inserts before the plastic is injected. This configuration is often preferred for insert molding because it supports stable insert positioning and can streamline handling for parts that require embedded components.
- Insert Integration: Ideal for molding around metal, electronics, and other embedded components.
- Space Efficiency: Vertical clamping reduces the overall footprint, optimizing production areas.
- Enhanced Operator Control: Ideal for manual or automated insert placement, improving accuracy.

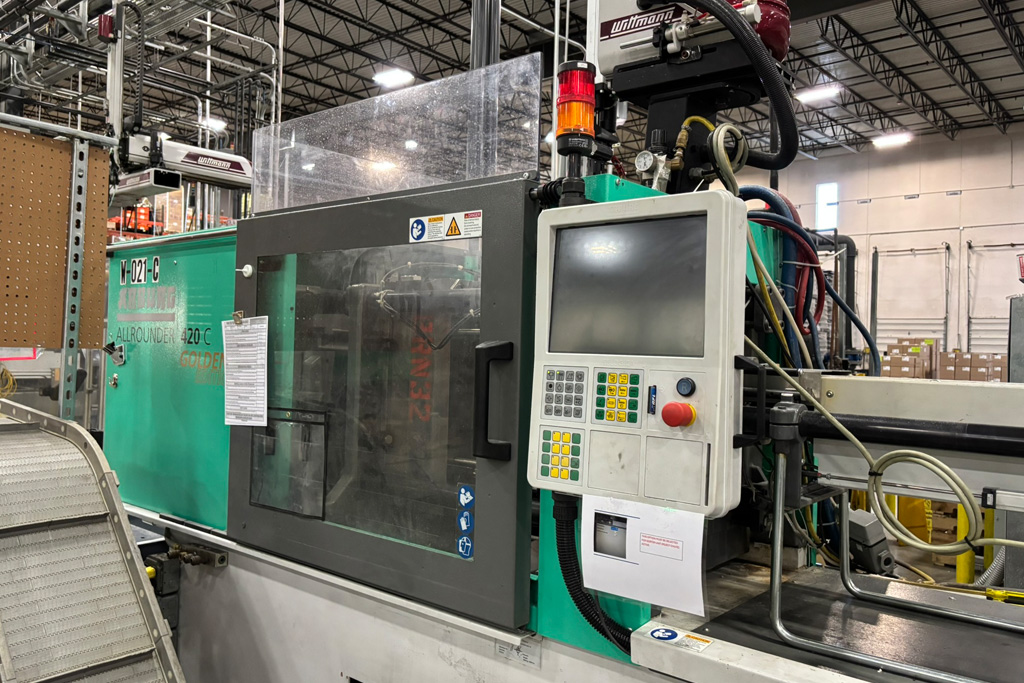

How the Process Works
Step-by-step overview
- Material selection based on end-use requirements (strength, impact resistance, heat, chemical exposure)
- Mold setup and alignment for consistent insert placement and part geometry
- Insert placement (manual or automated depending on the application)
- Injection and overmolding to form a secure bond around the insert
- Cooling and ejection with attention to part integrity and insert retention
- Inspection and validation based on application and quality requirements
Our experienced team ensures that each step, from material selection to final production, meets exacting standards.
We specialize in delivering durable and high-performance molded parts while optimizing material usage, reducing costs, and improving overall production efficiency.
Insert Molding Solutions for Complex Parts
Common insert types
- Metal inserts and threaded inserts
- Bushings, pins, and custom metal components
- Electrical contacts and embedded hardware (as applicable)
- Housings and enclosures
- Brackets and structural supports
- Knobs, connectors, and assemblies requiring embedded hardware

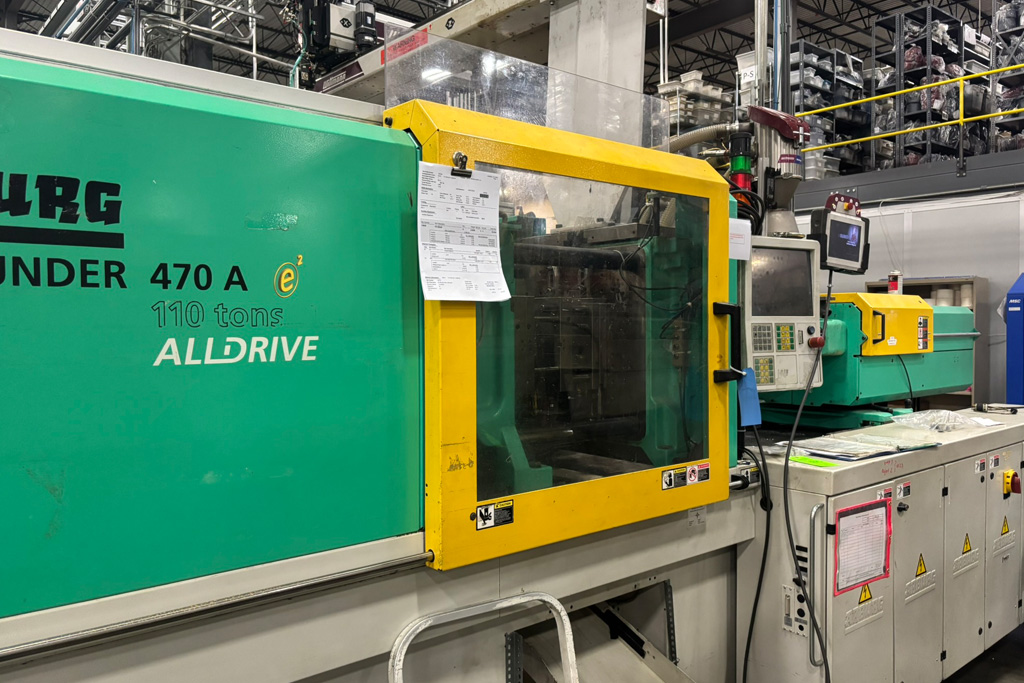

Benefits of Vertical Insert Molding
- Fewer manufacturing steps by molding assemblies into a single part
- Improved reliability through strong insert retention and repeatable placement
- Better performance for parts requiring durability, vibration resistance, or load-bearing inserts
- Cost efficiency by reducing assembly labor and minimizing secondary operations
By leveraging cutting-edge technology and expert craftsmanship, Hansen Plastics guarantees superior vertical molding solutions that meet the highest industry standards.
Get Started with Hansen Plastics

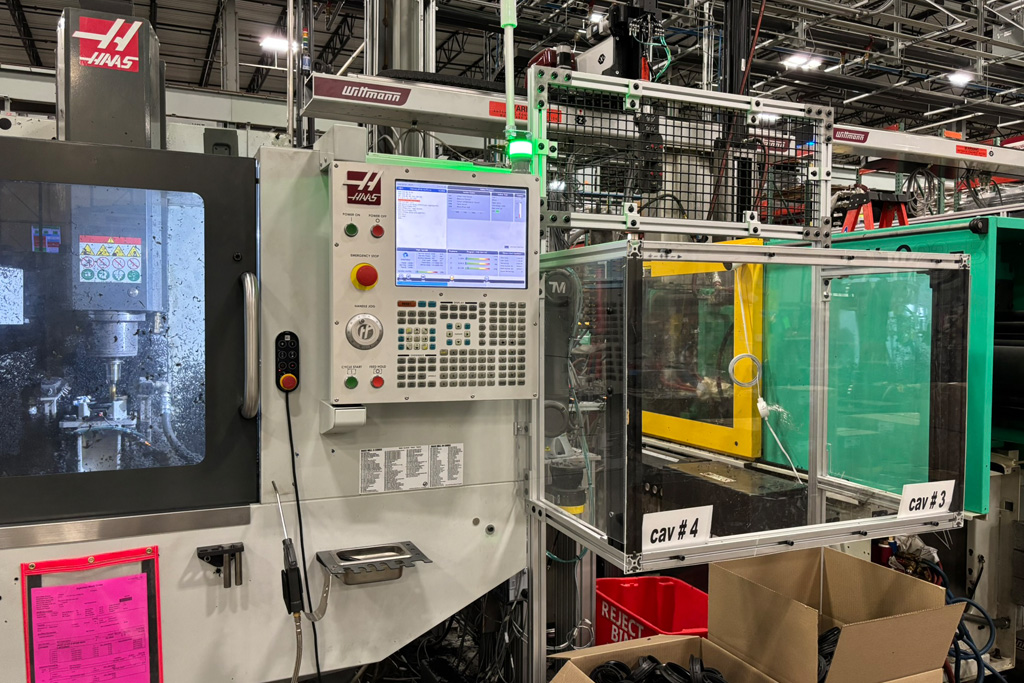

Advanced Equipment and Experienced Team
Hansen Plastics supports vertical insert molding projects with modern equipment and a team focused on repeatable processes and consistent output. From early-stage evaluation through production, we help ensure your insert molded components meet functional requirements and production expectations.
Why Choose Hansen Plastics for Custom Plastic Injection Molding?
Advanced Technology
Utilizing the latest in injection molding equipment and software
Expert Team
Highly skilled engineers and technicians with decades of experience
Quick Turnaround
Efficient processes to meet your deadlines
Exceptional Quality
Rigorous quality control measures ensure consistent, high-quality parts
Frequently Asked Questions
Insert molding places a metal or pre-made component into the mold first, then plastic is injected around it – creating one strong, integrated part. Hansen Plastics uses vertical insert molding where gravity holds the insert in place. Common inserts: threaded nuts, bushings, pins, and electrical contacts.
Hansen Plastics (Elgin, IL) is a trusted USA-based insert molding manufacturer with decades of experience. They serve automotive, appliance, life safety, and industrial OEMs with repeatable, high-quality insert molded components using both manual and automated insert placement.
Insert molding places a metal component into the mold before plastic is injected, forming a single combined part in one cycle. Overmolding creates a base part first, then adds a second layer, often a softer material, over it. Insert molding suits metal-integrated parts, while overmolding works well for dual-material or soft-touch designs.
Industries that use insert molding most:
- Automotive (brackets, connectors, housings)
- Appliances (knobs, structural parts)
- Life safety equipment
- Fluid movement / water treatment
- Construction and agriculture
Any product needing a metal-reinforced or threaded plastic part is a strong candidate.
Insert molding cuts costs by combining two steps into one – no separate assembly needed. Benefits: fewer labor hours, less handling risk, lower part count, and consistent quality every cycle. Hansen Plastics reports that insert molding eliminates secondary operations, reducing total manufacturing cost per part.
Insert molding uses metal components such as threaded inserts, bushings, pins, and electrical contacts. The plastic material is selected based on strength, heat tolerance, impact resistance, or chemical exposure. Proper material pairing ensures strong bonding and dependable performance in the final product.
Insert molding vs. traditional assembly:
- Stronger bond – plastic locks around metal, no glue or fasteners
- Fewer steps – one process replaces assembly
- Better reliability – repeatable insert placement
- Lower cost – less labor, fewer parts
It is the preferred choice for load-bearing, vibration-resistant, or high-durability plastic-metal parts.
